Tiny6410 Development Board Overview

Overview

The Tiny6410 Development Kit is a high-performance controller board introduced. It is designed based on the S3C6410 microcontroller, 256MByte DDR SDRAM, 2GByte Nand Flash, RTC, Audio and net on board. It has integrated RS232, USB, Ethernet, Audio In/ Out, Keyboard, LCD, CVBS、TV out, camera in, SD card and more other functions on board. So many hardware resources provided by the expansion board, it becomes a solid reference board for customer design.

We also offers a complete software development package to customers. The board supports linux 2.6.3, Android2.3 and WindowsCE 6.0 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the Samsung S3C6410 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.

Hardware Features

The S3C6410X is a 16/32-bit RISC microprocessor, which is designed to provide a costeffective, low-power capabilities, high performance Application Processor solution for mobile phones and general applications. To provide optimized H/W performance for the 2.5G & 3G communication services, the S3C6410X adopts 64/32-bit internal bus architecture. It also includes many powerful hardware accelerators for tasks such as motion video processing, audio processing, 2D graphics, display manipulation and scaling. An integrated Multi Format Codec (MFC) supports encoding and decoding of MPEG4/H.263/H.264 and decoding of VC1.

The Tiny6410 Single Board Computer is based on S3C6410 processor. This board is characterized as follows:

CPU board - Tiny6410 CPU board

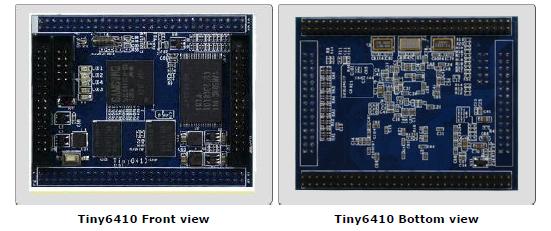

Tiny6410 CPU board overview

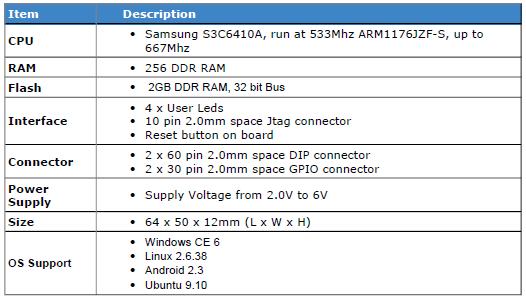

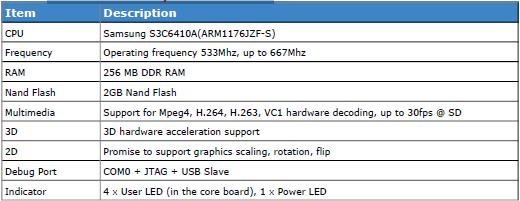

Feature of the Tiny6410 CPU board

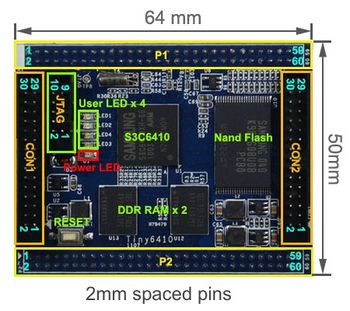

Pin definition of the Tiny6410 CPU board

Tiny6410 CPU board use the 2.0mm pitch double pin, leads to a total of 4 groups: P1,P2, CON1, CON2. P1 and P2 are each 60 Pin; CON1 and CON2 are each 30Pin, leads to a total of 180 Pin. The follow shown is the layout description:

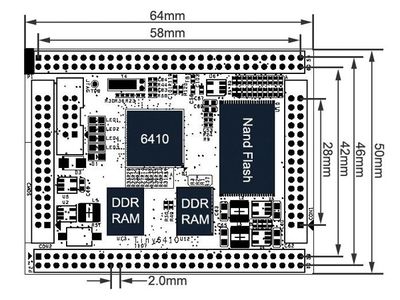

Dimensions of the Tiny6410 CPU board

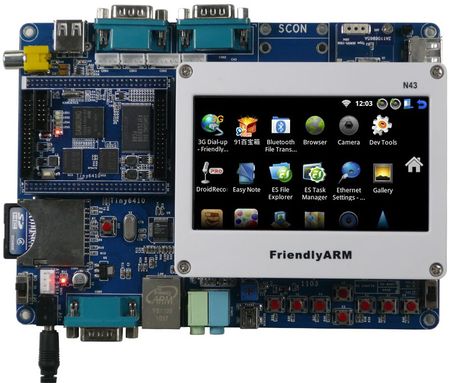

Mother board - Tiny6410-SDK

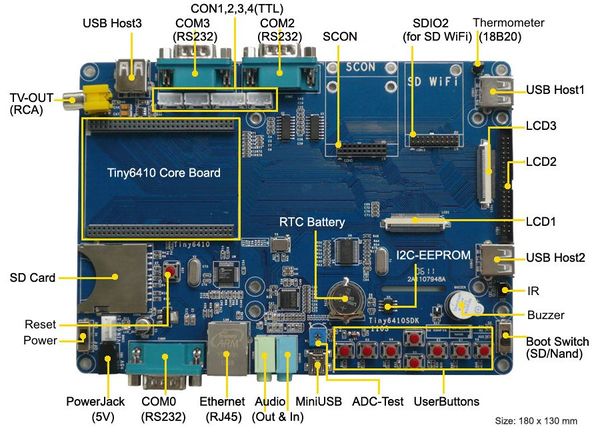

Interface Of the Tiny6410 SDK

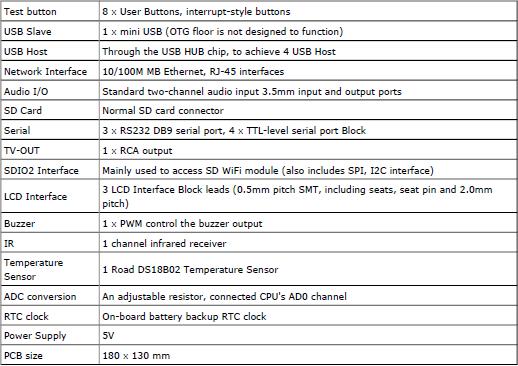

Feature of the Tiny6410 SDK board

Software

WinCE 6.0

• Boot loader
  • Version: Stepldr and EBOOT(provide Source code)
  • Function: support download and update system by SD and USB support uplate the boot logo
  • Qucik boot: for 15s booting
• WinCE NK
  • Version：Wince6.0 R3
  • Function: HIVE register support, BINFS support, 256M memory manage, SLEEP
• Device Drivers
  • TFT LCD/Touchscreen(support 3.5"LCD, 4.3"LCD, 7.0"LCD, 8"LCD, vGA)
  • CMOS camera driver
  • user key driver, PWM driver
  • RTC driver
  • DM9000 driver
  • SD card support
  • touch screen support
  • audio In.Out
  • USB host: usb disk, usb keyboard, usb mouse
  • serial driver
  • media support(JPEG, fimc, MFC, 2D/3D,TVENC, TVSCALER)
  • WIFI, Camera, TV-Out
  • VGA driver(can support 1024 * 768),
  • USB bluetooth, USB WiFi
  • IE6 explorer.
• Test program
  • LED test, button test, serial debug tools, PWM test, TV test, OpenGL test
  • COMS camera test, SD wifi test, USB wifi test, backlight control test, usb bluetooth test, NET test.

Linux 2.6.36

• Boot loader
  • verison: s3c-u-boot-1.6.1
  • Function: support boot and update system by SD card and USB
• Linux kernel
  • verison: s3c-Linux-2.6.38
  • Compile: arm-none-linux -4.5.1-v6-vfp
  • Function: support MFC, Jpeg encode, 2D/3D
• Device Driver
  • TFT LCD/Touchscreen(support 3.5"LCD, 4.3"LCD, 7.0"LCD, 8"LCD, VGA module)
  • LCD backlight control
  • 4 Serial port driver
  • DM9000 net driver
  • Audio driver(WM9714)
  • RTC driver, User LED driver,
  • USB HOST driver, USB camera, USB key and mouse, USB Disk.
  • USB 3G module, USB WiFi
  • SD card driver,
  • IIC EEPROM
  • Watchdog driver
  • media play driver(JPEG, fimc, MFC, 2D/3D,TVENC, TVSCALER)
  • CMOS Camera
  • SPI driver
  • SDIO WIFI, GPRS
  • USB module( bluetooth, WiFi, mouse, key)
• File System support
  • ubifs/yaffs2/cramfs/fat32/NFS/Ext2/Ext3
• Gui support
  • qtopia-2.2.0
  • QtE-4.4.3
  • QtE-4.7.0
• server program
  • Busybox 1.13
  • Telnet, FTP, Inetd
  • boa(web server)
  • madplay(play mp3)
  • snapshot(capture program)
  • ifconfig, ping, route(net command)
• Test program
  • ADC test, LED test, buttons test, I2C test
  • LCD test, ping test, usb camera test
  • recode test, web browse test
  • watch dog test
  • net config test
  • LCD backlight control test
  • lauguage test(support chinese, english)
  • QT4 test
  • SMplayer test
  • 3G set
  • GPRS Set
  • USB camera test
  • TV-out test
  • SD WiFi, usb wifi test

Android 2.3

• Boot loader
  • verison: s3c-u-boot-1.1.6
  • Function: support boot and update system by SD card and USB
• Linux kernel
  • verison: s3c-Linux-2.6.36
  • Compile: jdk5
• Device Driver
  • TFT LCD/Touchscreen, Audio OUT, MMC/SD card, NET, Serial port
  • watchdog, RTC, keyboard
  • WIFI, Camera, USB bluetooth, Net DHCP, usb disk, 3G
• File System support
  • Ubi filesystem, yaffs, ext2/3,
• Function use example
  • Ethernet, Support DHCP.
  • SD WiFi support
  • COMS Camera support
  • 3G support(WCDMA, CDMA2000, TD-CDMA)
  • USB Disk support
  • USB Bluetooth support
  • Switch horizontal and vertical screen
  • Dynamic Wallpapers

Ubuntu 0910

• Boot loader
  • verison: s3c-u-boot-1.1.6
  • Function: support boot and update system by SD card and USB
• Linux kernel
  • verison: s3c-Linux-2.6.28.6
• Ubuntu rootfs
  • Ubuntu 0910, EXT2/3, UBIFS
