Overview

Mini210-50 1.jpg

The Mini210 Single Board Computer is a high-performance controller board introduced. It is designed based on the S5PV210 microcontroller, 512MByte DDR2 RAM, 1GByte Nand Flash, RTC, Audio and net on board. It has integrated RS232, USB, Ethernet, Audio In/Out, Keyboard, LCD, HDMI, TV out, camera in, SDIO WiFi Module, SD card and more other functions on board. So many hardware resources provided by the expansion board, it becomes a solid reference board for customer design.

We also offers a complete software development package to customers. The board supports linux 2.6.35, Android2.3 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the Samsung S5PV210 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.

Features

Mini210 1.jpg

  • 1GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
  • 512MB DDR2 RAM and 1GB NAND Flash
  • LCD/Touch Screen, HDMI,TV out, Audio support
  • TF card, USB Host/OTG support
  • Ethernet, WiFi, serial port, GPIO
  • Linux 2.6.35 & Android 2.3 support

Hardware Features

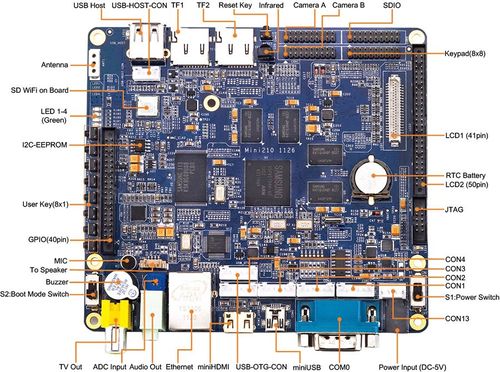

Mini210 2.jpg

The Mini210 Single Board Computer is based on S5PV210 processor. This board is characterized as follows:

  • System
    • CPU: 1 GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
    • RAM: 512 MB DDR2 RAM, 32 bit Bus
    • Flash: 1GB NAND Flash
    • EEPROM: 256 Byte (I2C)
    • Ext. Memory: 2x microSD-Card socket
    • RTC: Real Time Clock with battery
  • Video&Audio
    • LCD Interface: 50 pin (2.0 mm) and 41 pin (1.0 mm) connector for FriendlyARM Displays
    • Monitor: miniHDMI (type C)
    • TV Output
    • Camera: 2x 20 pin (2.0 mm) Camera interface
    • Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
    • Audio Input: Condenser microphone
  • Network
    • Ethernet: RJ-45 10/100M (DM9000)
    • WiFi/WLAN: onboard SD-WiFi with ceramic antenna Multi-IO
    • Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
    • IR: Infrared Receiver
    • USB: 1x USB-A Host 2.0, 1x miniUSB Slave/OTG 2.0
    • Beeper: PWM buzzer
    • User Inputs: 8x push buttons and 1x A/D pot
    • User Outputs: 4x LEDs
    • Expansion: 40 pin GPIO (ADC, I2S, I2C, SPI, PWM, IO...), 20 pin SDIO (SD, SPI,I2C), 20 pin Buttons (2.0 mm)
    • Debug: 10 pin JTAG (2.0 mm)
  • Mechanical
    • Dimension: 130 x 115 x 18 mm
    • Temperature: 0°C to 70° C
    • Power: regulated 5V (DC-Plug)
    • Board Weight: 98g

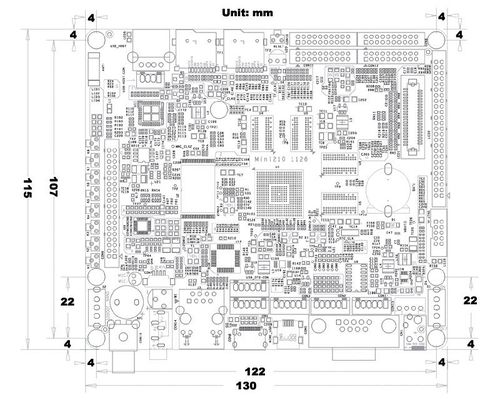

Dimension

Mini210 3.jpg
