Note

This section assumes that you have in front of the method in accordance with the USB driver installed and the development board is set to NOR flash to start the system update and installed NAND flash, please set to start, set the method please refer to previous chapters.

Instruction

The binary file of WinCE 5.0 installation is located in CD-ROM“\images\wince5.0”
The binary file of WinCE 6.0 installation is located in CD-ROM“\images\wince6.0”

The step of installing WinCE 5/6 is same except for the file selection. They are collectively named as WinCE.

The main step of installing WinCE is

1)Install bootloader
2)Install BootLogo(fomat bmp)
3)Install WinCE kernel image

The specific procedure of installation is below:
Tips: Please connect serial port , open Hyper Terminal , power the development board , enter the BIOS menu.

Install bootloader

1)Open the DNW and connect the USB cable. [USB :OK] in title bar indicate the USB cable is connect successfully. Then download the Nboot.bin according to the menu selection [n].

Mini2440 winCE 1.jpg

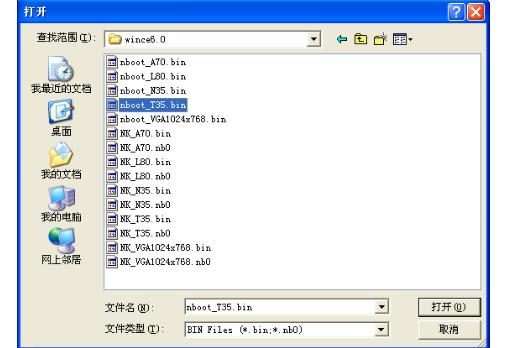

2)Select “USB Port->Transmit” and open the file Nboot.bin located in “\images\wince6.0” to download.

Bootloader descriprtion:
nboot_W35.bin – apply to 3.5” LCD landscape mode(LQ035Q1DG06 or compatible)
nboot_X35.bin –  apply to Sony 3.5" LCD
nboot_N35.bin –  apply to NEC 3.5" LCD
nboot_T35.bin –  apply to 3.5” LCD
nboot_L80.bin –  apply to Sharp 8”LCD( or compatible)
nboot_A70.bin –  apply to 7” LCD
nboot_VGA1024x768.bin – apply to VGA output, resolution 1024x768

Mini2440 winCE 2.jpg

3)After download is complete, the BIOS will burn Nboot.bin into BLOCK0 in Nand Flash automatically.

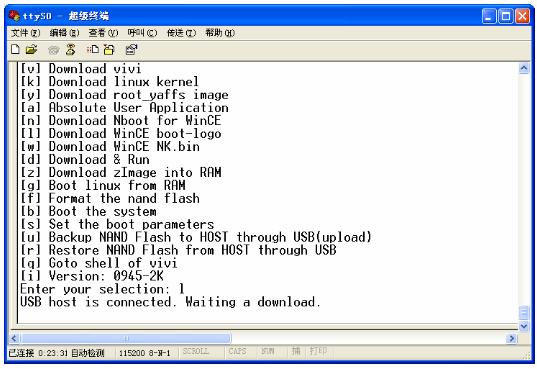

1)Select function [I] in BIOS menu and download bmp format picture for BootLogo.

Mini2440 winCE 3.jpg

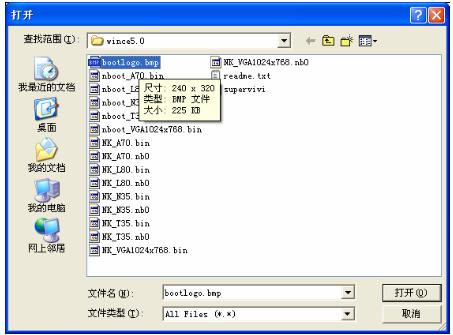

2)Click “USB Port->Transmit/Restore” in DNW and select bootlogo.bmp which is located in “images\wince6.0\bootlogo.bmp”.

Mini2440 winCE 4.jpg

3)After uploading is complete, BIOS will automatically upload bootlogo.bmp to Nand Flash and return to main menu.

Install WinCE kernel image

Description: Supervivi has integrated the function of WinCE kernel programmer. It’s unnecessary to upload other “springboard file’ such as Eboot etc. First supervivi upload NK.bin to RAM via USB cable and format Nand Flash, then creat system partition and user partition. WinCE system we provided is appropriate for 64M/128M-1Gb mini2440/micro2440, so the kernel file uploaded is same.

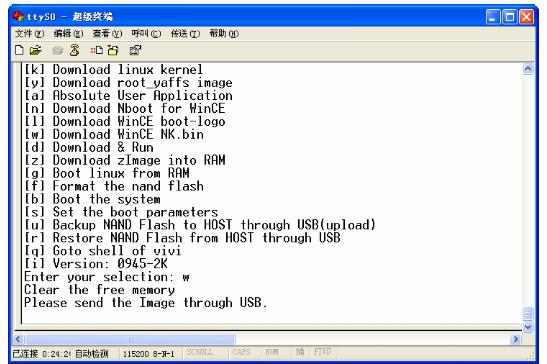

1)Select function [w] in BIOS menu to upload WinCE kernel.

Mini2440 winCE 5.jpg

2)Click “USB Port->Transmit/Restore” in DNW and upload the WinCE kernel located in directory “\images\wince6.0”

WinCE kernel description:

NK_W35.bin – apply to 3.5” LCD landscape mode(LQ035Q1DG06 or compatible)
NK_X35.bin –  apply to Sony 3.5" LCD
NK_N35.bin –  apply to NEC 3.5" LCD
NK_T35.bin –  apply to 3.5” LCD
NK_L80.bin –  apply to Sharp 8”LCD( or compatible)
NK_A70.bin –  apply to 7” LCD
NK_VGA1024x768.bin – apply to VGA output, resolution 1024x768

Mini2440 winCE 6.jpg

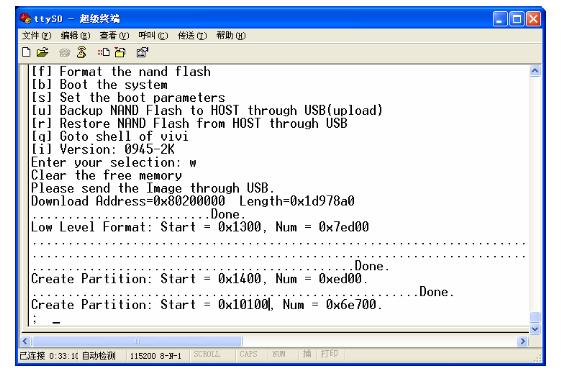

When uploading is complete, BIOS will format the Nand Flash. Then create the partition and upload the WinCE in order. When uploading is complete, the system will start automatically. Serial port message in all procedure is below.

Mini2440 winCE 7.jpg
