Safety Instructions

Building the printer will require a certain amount of physical dexterity, common sense and a thorough understanding of what you are doing. We have provided this detailed instruction to help you assemble it easily. However ultimately we cannot be responsible for your health and safety whilst building or operating the printer, with that in mind be sure you are confident with what you are doing prior to commencing with building or buying. Read the entire manual to enable you to make an informed decision. Building and operating involves electricity, so all necessary precautions should be taken and adhered to, the printer runs on 12V supplied by a certified power supply, so you shouldn’t ever have to get involved with anything over 12V but bear in mind there can still be high currents involved and even at 12V they shouldn’t be taken lightly. High temperatures are involved with 3D Printing, the Extrusion nozzle of the hot end can run about 230°C, the heated bed runs 110°C and the molten plastic extruded will initially be at around 200°C, so special care and attention should be made when handling these parts of the printer during operation. We wouldn’t recommend leaving your printer running unattended, or at least until you are confident to do so. We cannot be held responsible for any loss, damage, threat, hurt or other negligent result from either building or using the printer.

Preparation

1. Unpack the kit and check if all parts are in the box and check the condition of each part, there might be some damage during shipping. To help you with this, there is BOM in the box and each bag was labeled with part number. 2. Contact our customer service immediately by email or through the website if you find any missing or damaged parts. And on the bottom of the BOM, there is a signature of reviewer, please take a picture of it and attach the picture in your mail. 3. Read through each chapter of these instructions to gain an over-all idea of what is involved and how long it might take, before starting on the work described. Or you can watch the video here. 4. Before you start, you can put all the part in order to save your time especially those screws and nuts. Do not mix them up. 5. Ensure you have the necessary skills to carry out the work, or enlist the help of someone who does. 6. Work on a big firm table or bench in a clean dry well-lit area. 7. This kit contains tiny parts; please keep them away from kids under 3. 8. Ask for help if you run into any problems - our contact details are on the website and we will always do our best to resolve any problems encountered.

Unfold the box and check the package list

Unfold the package and take all the parts out to check the condition of the items.

• All the acrylichttp://www.geeetech.com/wiki/index.php/Special:Upload plate has been etched with part ID and the plate is covered with a sheet of kraft paper, you need to tear them off.
• The part ID is corresponding thttp://www.geeetech.com/wiki/index.php/Special:Uploado the number labeled on the bag of every part. Some parts may not have label, you can refer to the pictures on the package list.

1. Assemble the threaded rods of Y axis

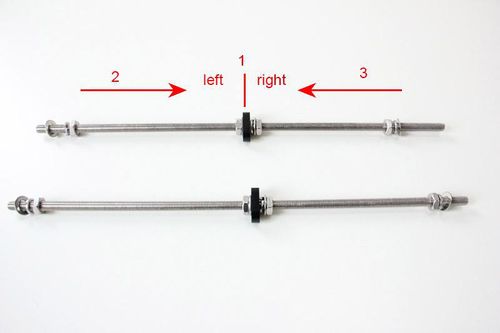

Thread the nuts and washers into the two M10 threaded rods separately. The order should be:

1) Thread the acrylic fender (Y plate connecting plate) in the middle.

2)Thread the M10 washer>M10 nut >M10 nut >

 M10 nut <M10 nut < M8 spring washer<M10 washer in turn on the left

3) Thread theM10 washer < M8 spring washer < M10 nut < M10 nut< M8 spring washer < M10 washer in turn on the right

Watch the Video here.

2. Assemble the front and back support of y axis.

Thread the rod to the plate, screw up the threaded rods and plate with M10 nut and M10 washer at both end. You don’t have to tighten it because you need to adjust the distance between the front and rear plate later when you assemble the side panel.

• Tips:

the Y-axis must be a rectangle, that is the rods on both side should be parallel, so is the front and back plate. Otherwise it will cause obstruction for the belt later. You can use a Digital Caliper to measure.

You can watch the video here.

3.Mount the Y motor
